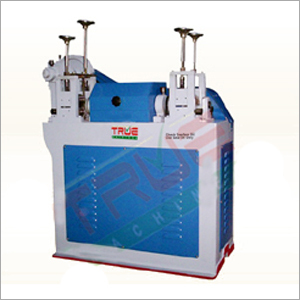

Wire Straightening Cum Cutting Off Machine

Wire Straightening Cum Cutting Off Machine
Wire Straightening Cum Cutting Off Machine
Product Code : SBT – 11- 16
Product Description

We have thoroughly established proper infrastructure facilities that enable us to manufacture and export a quality grade Wire Straightening Cum Cutting Off Machine. These machines are used to manufacture the rod and coil wires, which are used in fans, refrigerators and automobiles. To manufacture these machines we use premium quality materials, obtained from the trusted vendors. Our Wire Straightening Cum Cutting Off Machine has a fast rotating spinner, which passes through the coils to be straightened and cut.

Features:

  • High operational fluency

  • Maintenance free

  • Easy to operate

Further Details:

S.B. Machine Tools offers irresistible Automatic Wire Straightening and Cutting Machine, having trade mark Sanger an exclusive and elite combination of speed and accuracy backed by intensive research of experts. These machine are used where wire is further processed in rods, coiled wire accurate straightening, close length tolerances and high output are of importance, widely used by electric welding rods manufactures, electric fan guards, refrigerator racks, cloth hangers, automobile parts, electric parts industry, gives you both financial and inner core satisfaction as it is very easy to use enquires no special skill.

Type

Sanger
1.6 - 5 mm

Sanger
2 - 6 mm

Sanger
3 - 8 mm

Sanger
3 - 10 mm

Sanger
4 - 12 mm

Sanger
8 - 15 mm

Size
of Wire (Dia.)

mm 1.6-5
0.62-0.192
B.W.G.
16.6

mm 2-7
0.80-0.250
B.W.G.
14.3

mm 3.2-8
0.125-0.315

mm 3.2-10
0.125-0.375

mm 3.2-12.7
0.125-0.5

mm 8-15
0.315-0.590

Length
or wire
to be cut
automatically

mm
26-300
1"-12"

mm
25-1000
1"-36"

mm
25-1000
1"-36"

mm
25-1000
1" - 36"

mm
50-1200
2"-48"

Mm
75-1800
3"-72"

Capacity
(per min.)

ft. 70

ft. 60

ft. 55

ft. 50

ft. 45

ft. 40

Power
Required

2 H.P.

3 H.P.

5 H.P.

5 H.P.

10 H.P.

10 H.P.
& 3

Working Area
Required

30" x 16"

42" x 18"

48" x 20"

50" 20"

56" x 22"

83" x 21"

Net weight

325 kg.

410 kg.

450 kg.

550 kg.

950 kg.

1150 kg.



The machine operates by drawing the wire from the coil through the fast rotating spinner, passes through a cutting off tool into the scaling bar where it strikes at the adjusted length and this stroke makes the cutting mechanism complete. The straightening function is performed by 5 straightening blocks which are adjustable and contains a simple to use straightening bush lets the user to make replacement to his own work.
